Introduction

A 3 way plug valve serves as a pivotal component in industrial fluid control systems, offering versatility and reliability in directing flow paths. In this blog, we will explore the essential features that distinguish a high-quality 3 way plug valve and discuss why investing in superior components can optimize performance, safety, and longevity. As a leading valve manufacturer, Fanlei has integrated advanced research, design, production, and sales capabilities to deliver robust solutions that meet diverse application requirements. By understanding the nuances of a 3 way plug valve, engineers, procurement specialists, and maintenance teams can make informed decisions that boost system efficiency and reduce operational costs.

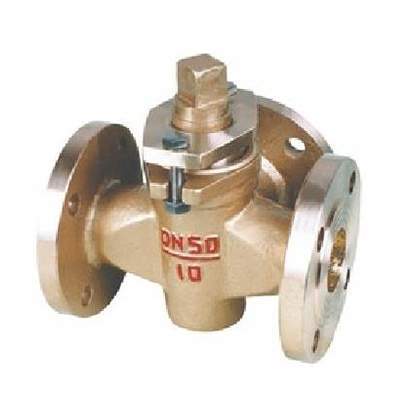

Understanding 3 Way Plug Valve Basics

A 3 way plug valve is designed to control the flow of liquids, gases, or slurries by rotating a cylindrical or conically tapered plug within the valve body to align or block ports. There are two primary configurations: L-port (switching) and T-port (mixing/diverting). Each configuration offers distinct flow paths:

• L-port configuration: Diverts flow from one inlet to one of two outlets, or vice versa.
• T-port configuration: Allows mixing of two inlets into a single outlet or dividing one inlet into two outlets simultaneously.

By rotating the plug 90 degrees or 180 degrees (depending on design), operators can change flow direction quickly, making the 3 way plug valve ideal for applications that require frequent switching or mixture control. The simple quarter-turn operation and minimal pressure drop further underscore its appeal in oil & gas, chemical processing, water treatment, and HVAC systems.

Definition and Operation of 3 Way Plug Valve

A 3 way plug valve typically consists of a body with three openings, a plug that fits snugly inside, and an actuator or handle for rotation. When the plug’s cavity aligns with one or more openings, fluid can pass through. In the closed position, the plug blocks flow entirely. The tight metal-to-metal or elastomer-to-metal seal between the plug and valve body ensures minimal leakage and consistent sealing performance even under high-pressure conditions.

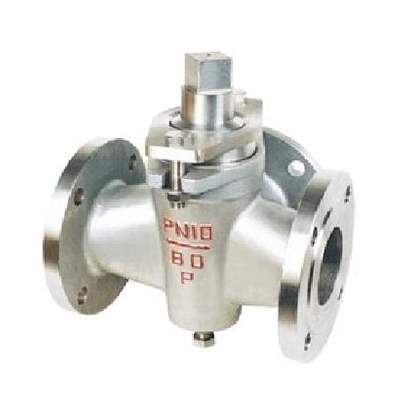

Importance of Material Selection for 3 Way Plug Valve

Material selection directly impacts the performance, durability, and safety of a 3 way plug valve. Common materials include carbon steel, stainless steel, brass, bronze, and exotic alloys, each offering distinct advantages:

• Carbon steel: Cost-effective and suitable for many industrial applications; however, it may be prone to corrosion in aggressive environments unless properly treated.
• Stainless steel: Offers excellent corrosion resistance, making it ideal for chemical, food processing, and pharmaceutical applications.
• Bronze/Brass: Often used in lower-pressure or non-corrosive fluid systems due to good machinability and moderate corrosion resistance.
• Exotic alloys (e.g., Hastelloy, Monel): Provide unparalleled resistance to high temperatures, corrosive media, and abrasive slurries, but at a higher cost.

Fanlei’s R&D team emphasizes a rigorous material selection process. By leveraging metallurgical testing, finite element analysis, and real-world performance data, Fanlei ensures each 3 way plug valve is constructed from materials that match the intended service conditions.

Design Innovations in Modern 3 Way Plug Valve

Design advancements have significantly improved the functionality of the 3 way plug valve. Some key design features to look for include:

• Modular Construction: Facilitates easy maintenance, plug replacement, and customization of flow paths. A modular design also simplifies disassembly for cleaning or repair.
• Full-Bore vs. Reduced-Bore: Full-bore valves maintain consistent diameter across flow paths, minimizing pressure drop. Reduced-bore designs may offer cost savings but can impose additional flow restrictions.
• Fire-Safe Design: Incorporates metal-to-metal seals or special seat materials that retain sealing capability even after exposure to fire, ensuring safety in high-risk environments.
• Bidirectional Flow Capability: Some modern 3 way plug valves allow flow in both directions without performance loss, offering greater installation flexibility.
• Actuator Compatibility: Designed to accommodate manual handles, gear operators, pneumatic actuators, or electric actuators without extensive modifications. This flexibility aids in automation and remote control of valve operations.

Fanlei continuously invests in design innovation. Our engineers employ 3D modeling and computational fluid dynamics (CFD) to optimize plug contours and body geometries, resulting in smoother operation, reduced torque requirements, and enhanced sealing life.

Sealing Mechanisms in a Quality 3 Way Plug Valve

A robust sealing mechanism is vital for leak-free performance in a 3 way plug valve. Key considerations include:

• Metal-to-Metal Seals: Offer long-lasting service at high temperatures and pressures. Precision machining of the plug and body ensures a tight fit, reducing the risk of leakage.
• Soft Seals (Elastomeric Seats): Provide low operating torque and excellent tightness at lower pressures. Common materials include PTFE, reinforced PTFE, and various elastomers like EPDM or Viton, chosen based on chemical compatibility.
• Pressure-Assisted Seals: Use system pressure to enhance the sealing force between the plug and seat, improving performance under high-pressure differentials.
• Replaceable Seat Inserts: Allow for quick and cost-effective maintenance without replacing the entire valve. Seat inserts can be tailored to specific temperatures, pressures, and fluid characteristics.

Fanlei’s production line incorporates automated lapping machines to achieve mirror-like surface finishes on plug and seat surfaces. This precision ensures that every 3 way plug valve meets or exceeds API 599 and ISO 9001 standards for leakage performance.

Flow Control and Versatility of 3 Way Plug Valve

One of the most compelling reasons to choose a 3 way plug valve is the versatility it offers in flow control:

• Switching Operations: In an L-port configuration, the plug rotates 90 degrees to divert flow from a common inlet to one of two outlets. This feature is useful in selecting different flow paths, such as alternating between two process lines.
• Mixing and Diverting Operations: In a T-port configuration, flow can be mixed from two inlets into a single outlet, or one inlet can be simultaneously diverted to two outlets. This makes the valve suitable for blending operations, sampling systems, or waste diversion.
• Minimal Pressure Drop: The straight-through flow paths and streamlined plug design reduce turbulence and energy loss, translating to lower operational costs.
• Fast Operation: A simple quarter-turn actuation allows for rapid switching, ideal for processes requiring frequent flow adjustments.

Fanlei’s engineers ensure that each 3 way plug valve provides smooth, low-torque operation by incorporating advanced coatings (e.g., DLC or tungsten carbide) on the plug surface, reducing friction and wear even in abrasive or high-cycle applications.

Pressure and Temperature Ratings to Consider

When specifying a 3 way plug valve, it is critical to evaluate the pressure and temperature ratings to match system requirements. Key parameters include:

• Pressure Class: Ranges from ANSI 150 to ANSI 600 (or higher), depending on material and design. Higher pressure classes require more robust construction and thicker valve bodies.
• Temperature Range: Determined by the materials of construction and the sealing mechanism. Carbon steel may be rated for –29°C to 425°C, while stainless steel with PTFE seats might be limited to –20°C to 200°C. For extreme conditions, metal-seated valves can handle temperatures exceeding 500°C.
• Leakage Class: Defined by API 598 or ISO 5208 standards, specifying allowable leakage rates. A Class VI leakage rating indicates bubble-tight shutoff, ensuring minimal leakage even after extended use.

Fanlei’s Quality Assurance department rigorously tests each 3 way plug valve at its designated pressure-temperature envelope, ensuring compliance with international standards such as ANSI/FCI 70-2 and API 6D.

Maintenance and Durability of 3 Way Plug Valve

Proper maintenance practices and durable design elements are essential for ensuring long service life of a 3 way plug valve. Consider the following:

• Ease of Disassembly: Valves designed with modular seats and plug assemblies allow technicians to perform maintenance without removing the entire valve from the pipeline.
• Wear-Resistant Coatings: Industrial coatings (e.g., ceramic nitrides, chromium carbide) on plug surfaces prolong lifespan in abrasive or corrosive environments.
• Lubrication Systems: Some 3 way plug valves incorporate packing systems that can be lubricated in situ, reducing operating torque and prolonging seal life.
• Inspection Intervals: Establishing routine inspection schedules based on operating cycles and fluid characteristics can prevent unexpected failures. Visual inspection, torque checks, and leak testing are recommended at least annually.
• Spare Parts Availability: Ensure that critical spare parts such as plug stems, seat inserts, and packing kits are readily available. Fanlei maintains comprehensive inventories of these components to minimize downtime.

When sourcing a 3 way plug valve, look for manufacturers that offer detailed maintenance manuals, training programs, and aftermarket support. Fanlei’s global network of service centers ensures that replacement parts and technical expertise are just a call away.

Applications of 3 Way Plug Valve in Various Industries

The adaptability of the 3 way plug valve makes it suitable for a wide array of industrial applications:

• Oil & Gas: Directing crude oil, natural gas, and refined products between process lines, managing sampling points, and performing manual bypass operations.
• Chemical Processing: Handling corrosive acids, solvents, and heat transfer fluids where tight shutoff and leak prevention are critical.
• Water Treatment: Diverting treated water, sampling, backwash operations, and bypass configurations in filtration systems.
• Food & Beverage: Managing sanitary fluids, CIP (clean-in-place) systems, and beverage mixing applications that demand hygienic construction.
• Pharmaceuticals: Controlling the flow of high-purity solvents and active ingredients, where contamination risk must be minimized.
• HVAC Systems: Diverting chilled water, hot water, or steam flows between heating and cooling loops.
• Power Generation: Managing boiler feedwater, steam distribution, and cooling circuits in thermal and nuclear power plants.

By tailoring the material selection, seal design, and actuation method, a 3 way plug valve from Fanlei can excel under the harshest process conditions, ensuring reliability and safety across diverse industrial environments.

Quality Assurance: Fanlei’s Expertise in 3 Way Plug Valve Production

Fanlei stands out as a premier valve manufacturer, integrating R&D, design, production, and sales operations under one roof. When investing in a 3 way plug valve, consider these distinguishing factors that Fanlei brings:

• Comprehensive R&D Capabilities
  • In-house laboratories equipped with material analysis, flow simulation, and fatigue testing facilities.
  • Collaborative design reviews to tailor each valve to specific customer requirements, ensuring optimal performance.
• Precision Manufacturing
  • Automated CNC machining centers capable of tight tolerances (±0.01 mm) on plug and body surfaces.
  • State-of-the-art heat treatment and surface finishing lines to enhance wear resistance and corrosion protection.
• Stringent Quality Control
  • Adherence to ISO 9001:2015 quality management system, ensuring consistent product quality from raw material inspection to final assembly.
  • Every 3 way plug valve undergoes hydrostatic, pneumatic, and seat leakage testing according to API 598 protocols.
• Customization and Flexibility
  • Ability to produce valves with special alloys (e.g., Duplex, Super Duplex, Inconel) for niche applications.
  • Customizable port configurations, face-to-face dimensions, and flange drilling to meet international standards (ANSI, DIN, JIS).
• Comprehensive After-Sales Support
  • Global network of service centers offering field commissioning, periodic maintenance, and spare parts supply.
  • Technical training programs for customer maintenance teams, ensuring optimal valve performance and longevity.

By choosing Fanlei’s 3 way plug valve, customers benefit from decades of expertise, robust manufacturing infrastructure, and dedicated customer service.

Comparison of 3 Way Plug Valve Configurations

In the table below, we compare common 3 way plug valve configurations based on flow path, typical use cases, material options, and pressure ratings. This non-brand-specific comparison can help users select the right configuration for their application.

Configuration Type	Flow Path Description	Typical Use Case	Material Options	Pressure Rating (ANSI)
L-Port	Single inlet to one of two outlets	Bypass systems, sampling switches	Carbon Steel, Stainless Steel, Bronze	150–600
T-Port	Two inlets to one outlet or one inlet to two outlets	Mixing, blending, diverter valves	Carbon Steel, Stainless Steel, Duplex Steel	150–600
Direct-Mount L-Port	L-Port with actuator mounting pad	Automated pipeline switching	Stainless Steel, Alloy Steel	150–600
Direct-Mount T-Port	T-Port with actuator mounting pad	Automated mixing/diverting	Stainless Steel, Alloy Steel	150–600
Fire-Safe L-Port	L-Port with fire-tested seals	Safety-critical applications	Stainless Steel, Inconel	300–600
Fire-Safe T-Port	T-Port with fire-tested seals	High-temperature mixing/diverting	Stainless Steel, Inconel	300–600

Pressure Rating Considerations for 3 Way Plug Valve

When selecting a 3 way plug valve, verifying the pressure class is essential. Pressure classes typically range from ANSI 150 to ANSI 600, indicating the maximum allowable working pressure (MAWP) at specific temperatures. Considerations include:

• ANSI 150 (PN20): Suitable for low to medium pressure systems (up to ~285 psi at ambient temperature). Common in general industrial and commercial applications.
• ANSI 300 (PN50): Rated for higher pressures (up to ~740 psi at ambient temperature). Often used in chemical processing, power generation, and higher-pressure HVAC systems.
• ANSI 600 (PN100): Capable of handling pressures up to ~1480 psi at ambient temperature. Ideal for high-pressure gas distribution and critical process lines.

Fanlei provides certified pressure-temperature rating charts with each 3 way plug valve, ensuring that the valve meets or exceeds project requirements. For extreme conditions, Fanlei can supply custom-designed valves rated to ANSI 900 or higher.

Temperature Range and Seal Material Compatibility

Temperature ratings for a 3 way plug valve hinge on both body and seal materials:

• Carbon Steel Body with PTFE Seals: Typically rated between –20°C to 200°C. PTFE offers excellent chemical resistance but may soften at elevated temperatures.
• Stainless Steel Body with Reinforced PTFE (RTFE) Seals: Extended temperature range from –29°C to 250°C. RTFE provides better mechanical properties at higher temperatures.
• Metal-Seated (Stainless Steel or Alloy): Can withstand temperatures exceeding 500°C. Metal seats deliver superior performance in steam, high-temperature oil, and exhaust gas applications.
• Elastomeric Seats (NBR, EPDM, Viton): Range from –40°C to 150°C, depending on the elastomer. Suitable for water, air, and light chemical service where flexibility and low torque are priorities.

Fanlei’s engineers work closely with customers to select seal materials based on fluid compatibility, temperature extremes, and cycle frequency, ensuring reliable sealing throughout the valve’s service life.

Installation Best Practices for 3 Way Plug Valve

Proper installation is crucial to realize the full benefits of a 3 way plug valve. Key guidelines include:

• Orientation and Flow Direction
  • Ensure the valve’s orientation matches the piping layout. For mixing applications, align both inlets properly.
  • Verify the flow arrow cast on the valve body (if applicable) to avoid backflow or incorrect switching.
• Support and Alignment
  • Provide adequate support to avoid undue stress on flanges or threaded connections.
  • Use flexible connectors or expansion joints if thermal cycling is expected to prevent misalignment.
• Bolting and Gasket Selection
  • Employ the correct bolt tightening sequence (star pattern) to ensure uniform gasket compression and prevent flange warping.
  • Choose gaskets compatible with the fluid, temperature, and pressure. PTFE or spiral-wound gaskets are common for 3 way plug valve flanged connections.
• Actuator Mounting
  • For actuated valves, ensure the mounting pad meets ISO 5211 standards for direct coupling.
  • Check for proper alignment to prevent excessive torque or binding during operation.
• Pre-Commissioning Checks
  • Perform a pressure test (e.g., hydrostatic or pneumatic) on piping before installing the valve to detect leaks or weaknesses.
  • Cycle the valve fully open and closed to verify smooth operation and confirm torque requirements.
• Lubrication and Packing Adjustment
  • If the valve includes packing glands, adjust packing nuts to eliminate leakage without over-tightening, which could increase actuation torque.
  • Apply appropriate lubrication to O-rings, packing, or metal-to-metal interfaces as recommended by the manufacturer.

Following these best practices ensures that a 3 way plug valve from Fanlei will achieve optimal performance, reduced downtime, and extended service life.

Maintenance Tips to Ensure Longevity of Your 3 Way Plug Valve

Regular maintenance of a 3 way plug valve helps prevent unexpected failures and extends operational life. Recommended practices include:

• Periodic Inspection
  • Visually inspect the valve for external leaks, corrosion, or damage.
  • Check actuator performance, ensuring it rotates the plug without excessive torque or sticking.
• Seal and Packing Replacement
  • Replace elastomeric seals and packing based on service hours, fluid type, and operating conditions.
  • Use genuine Fanlei replacement kits, which include precisely engineered seats and packing materials.
• Cleaning and Debris Removal
  • For slurries or solids-laden fluids, purge the valve periodically to remove sediment build-up.
  • Disassemble and clean the plug and body if performance degradation or jamming occurs.
• Lubrication
  • Apply suitable lubricant to the plug stem, packing, and bearing surfaces (if applicable).
  • Follow Fanlei’s lubrication schedule, typically every 6–12 months, depending on cycle frequency.
• Torque Verification
  • Measure the torque required to turn the plug periodically. A sudden increase in torque may indicate seat wear, packing tightness, or deposit formation.
  • Investigate and remedy causes promptly to avoid flange or actuator damage.

By adhering to these maintenance tips, users can maximize the return on investment for their 3 way plug valve and minimize costly unplanned outages.

Cost Considerations and Return on Investment

While the initial purchase price of a 3 way plug valve may be higher than that of simpler valve types, long-term benefits often justify the investment:

• Reduced Inventory Costs: One 3 way plug valve can replace multiple single-direction valves, lowering overall inventory needs.
• Lower Operating Costs: Minimal pressure drop and efficient flow paths translate to reduced energy consumption in pumping systems.
• Extended Service Life: High-quality materials, precision machining, and advanced seal designs reduce wear and tear, extending intervals between replacements.
• Minimized Downtime: Quick quarter-turn operation and modular maintenance features allow faster repairs, reducing production losses.
• Safety and Compliance: Fire-safe designs and tight shutoff capabilities help avoid environmental fines and safety incidents, protecting both personnel and the bottom line.

Fanlei’s pricing strategy focuses on delivering value through comprehensive lifecycle cost analysis. By calculating total cost of ownership (TCO) rather than merely the upfront equipment cost, customers gain a clearer picture of the economic advantages of a premium 3 way plug valve.

Sustainability and Environmental Aspects of 3 Way Plug Valve

Environmental concerns and sustainability goals have become top priorities for industrial operations. A 3 way plug valve can contribute positively in the following ways:

• Leak Prevention: High-quality seals and precision finishes dramatically reduce fugitive emissions, helping to meet stringent environmental regulations (e.g., EPA Leak Detection and Repair requirements).
• Material Recycling: Many bodies and plugs are made from recyclable metals such as carbon steel or stainless steel. At end-of-life, components can be remelted and reused.
• Reduced Carbon Footprint: The efficient flow characteristics of a 3 way plug valve decrease pumping energy requirements, lowering greenhouse gas emissions over the system’s lifecycle.
• Water Conservation: In water treatment and process industries, accurate flow diversion and mixing reduce waste and optimize resource usage.

Fanlei integrates eco-friendly manufacturing practices—such as waste recycling, energy optimization in production facilities, and responsible sourcing of raw materials—to ensure that every 3 way plug valve aligns with global sustainability objectives.

Conclusion

In summary, a high-quality 3 way plug valve offers unmatched versatility, robust sealing performance, and reliable operation across diverse industrial applications. From precise material selection and advanced design innovations to stringent quality assurance and comprehensive after-sales support, every aspect of the valve’s lifecycle impacts overall system efficiency and safety. Fanlei’s expertise in research, design, production, and sales ensures that each 3 way plug valve meets international standards while accommodating customer-specific requirements. If you are seeking a dependable solution to manage complex flow paths, reduce maintenance costs, and boost operational uptime, do not hesitate to contact us for more information on our 3 way plug valve offerings. We look forward to partnering with you to achieve superior performance in your fluid control systems.

FAQ

How do I know which material is best for my 3 way plug valve?

Material selection hinges on fluid compatibility, pressure, and temperature requirements. Carbon steel suits general industrial applications with moderate corrosion risk. Stainless steel is preferred for corrosive or sanitary environments. Exotic alloys like Duplex or Inconel are used when extreme corrosion or temperature resistance is needed. Always consult fluid compatibility charts and industry standards to determine the optimal material.

Can a 3 way plug valve handle abrasive or corrosive fluids?

Yes, provided it is constructed from appropriate materials and equipped with wear-resistant coatings or metal seats. For abrasive slurries, hardened surfaces such as tungsten carbide or ceramic coatings on the plug can resist erosion. For corrosive fluids, stainless steel or nickel-based alloys combined with PTFE or reinforced PTFE seals offer superior corrosion resistance.

What maintenance is required to ensure long-term performance of a 3 way plug valve?

Regular inspections, seal and packing replacement, lubrication, and torque verification are recommended. Depending on operating conditions, inspect valves every 6–12 months. Replace seals that show wear or deformation, clean internal passages to remove debris, and verify torque requirements to detect seal or deposit-related issues.
