Introduction

Selecting the ideal shut off gate valve is a critical decision for ensuring reliability, efficiency, and safety in any piping system. For engineers, procurement specialists, and facility managers, understanding the nuances of a shut off gate valve can mean the difference between seamless operation and costly downtime. In this guide, we will explore essential considerations, material options, installation tips, and maintenance strategies to help you make an informed purchase. Whether you are replacing an existing valve or specifying a new system, this buyer’s guide will provide actionable insights to choose the right shut off gate valve for your needs.

Why Quality Matters: Benefits of a Reliable Shut Off Gate Valve

Choosing a high-quality shut off gate valve offers numerous benefits, including:

Leak Prevention: A properly manufactured shut off gate valve minimizes leakage, ensuring system integrity and preventing fluid loss.
Longevity: Investing in a rugged valve reduces the frequency of replacements and maintenance, lowering total lifecycle costs.
Efficiency: Smooth operation and precise sealing help maintain optimal flow control and energy efficiency.
Safety: In critical applications such as oil and gas or chemical processing, a dependable shut off gate valve prevents accidents and environmental hazards.
Regulatory Compliance: Valves that meet international standards contribute to compliance with industry regulations.

Fanlei, a leading valve manufacturer integrating research and development, design, production, and sales, specializes in producing high-quality shut off gate valve solutions that address a wide range of industrial applications.

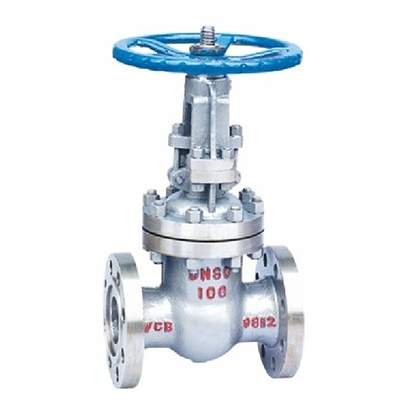

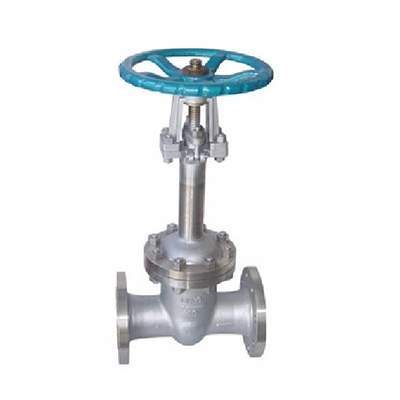

Understanding the Shut Off Gate Valve

A shut off gate valve is a linear motion valve designed to start or stop the flow of fluid. Unlike globe or ball valves that provide throttling capabilities, a shut off gate valve is primarily used in fully open or fully closed positions. Key characteristics include:

Gate Mechanism: The gate moves perpendicular to the flow, lifting to allow fluid passage or lowering to block the flow.
Low Pressure Drop: When fully open, the shut off gate valve offers minimal resistance to fluid flow.
Bidirectional Use: Many gate valves provide sealing in both flow directions, making them versatile for piping systems.
Non-Throttling: These valves are not suitable for flow regulation; they are designed for isolation purposes.

Fanlei’s engineering team ensures that each shut off gate valve meets rigorous performance criteria, utilizing advanced materials and precision machining to guarantee tight shutoff and durability.

Key Factors to Consider When Choosing a Shut Off Gate Valve

When evaluating different shut off gate valve options, consider the following essential factors:

Valve Material Selection

Material choice affects durability, corrosion resistance, and compatibility with the fluid medium. Common materials include stainless steel, carbon steel, ductile iron, and bronze. Factors to weigh:

Corrosion Resistance: Stainless steel valves excel in harsh or corrosive environments, while carbon steel may suffice for water or non-aggressive fluids.
Temperature Range: High-temperature services may require alloy steels or specialized carbon steel grades.
Compatibility: Ensure the material is compatible with the fluid’s pH and chemical composition.

Pressure Rating and Class

Shut off gate valves are classified by pressure ratings (e.g., ANSI Class 150, 300, 600). The pressure class must match or exceed the maximum working pressure of your system. Consider:

Operating Pressure: Select a valve rated for the highest operating pressure, including any transient spikes.
Safety Margins: Allow an appropriate safety factor to accommodate pressure fluctuations.
Industry Standards: Verify that the valve adheres to ASME, API, or other applicable standards.

End Connection Types

The choice of end connections determines ease of installation and compatibility with existing piping. Common options include:

Flanged Ends: Provide robust sealing and easy disassembly, typically bolted to mating flanges.
Welded Ends (Butt Weld or Socket Weld): Offer leak-free joints, commonly used in high-pressure or high-temperature systems.
Threaded Ends: Suitable for smaller valves and lower-pressure applications, but may not be ideal for frequent operation.

Valve Size and Flow Capacity

Selecting the correct valve size ensures adequate flow capacity and minimizes pressure drop. When sizing a shut off gate valve, consider:

Flow Coefficient (Cv): Match the valve’s Cv to system requirements to avoid bottlenecks.
Pipe Diameter: Typically, valve size equals pipe size, but in some cases, oversizing can reduce flow restriction.
Future Expansion: Anticipate any changes in flow requirements to avoid undersized valves.

Seal and Seat Design

The sealing mechanism determines the shut off gate valve’s leak-tight performance. Common seat materials include metal-to-metal and resilient elastomeric seats. Evaluate:

Leakage Class: Ascertain the valve’s leakage class (e.g., Class V or VI) to meet process specifications.
Seat Replaceability: Check if seats are replaceable for ease of maintenance.
Wear Resistance: In abrasive service, consider hardened seats or specialized coatings.

Compliance and Certifications

Ensure that your chosen shut off gate valve is certified to relevant industry standards. Certifications may include:

CE Marking: Indicates conformity with European directives.
API 600/602: Applicable for gate valve design specifications in oil and gas.
ISO 9001: Quality management system certification for manufacturing processes.

Operation Mechanism: Manual vs. Actuated

Shut off gate valves can be operated manually (handwheel) or with actuators (electric, pneumatic, or hydraulic). Consider:

Manual Operation: Cost-effective for infrequently operated valves but labor-intensive for large valves.
Electric Actuators: Suitable for remote or automated control, offering precise positioning.
Pneumatic/Hydraulic Actuators: Provide rapid operation and high thrust for larger valve sizes.

Maintenance and Serviceability

Long-term performance depends on ease of maintenance. Features to look for include:

Accessible Gland Packing: Simplifies packing adjustment to maintain a tight seal.
Replaceable Components: Look for modular designs that allow seat, stem, and bonnet replacement.
Inspection Ports: Facilitate routine inspection without full disassembly.

Comparison of Common Valve Materials and Applications

Below is a table showcasing various valve material options, their properties, and typical applications. This table appears in the middle section of this guide to help you weigh material choices.

Material	Temperature Range	Corrosion Resistance	Typical Application	Cost Relative to Others
Stainless Steel	–200 °C to 600 °C	Excellent against corrosives	Chemical, petrochemical, food processing	High
Carbon Steel	–29 °C to 450 °C	Moderate; prone to rust	Water, steam, gas transmission	Moderate
Ductile Iron	–10 °C to 200 °C	Good; may require coating	Water distribution, wastewater	Low
Bronze	–50 °C to 250 °C	Good; non-sparking	Marine, potable water, low-pressure steam	Moderate to High
Alloy Steel	–50 °C to 650 °C	Excellent in high-temp	Power generation, refineries, high-temp oil	High

Installation Considerations for Shut Off Gate Valves

Proper installation is crucial to the performance and longevity of a shut off gate valve. Follow these best practices:

Pre-Installation Inspection

Check Valve Integrity: Inspect for damage, such as dents, cracks, or debris in the body or seat.
Verify Material Certification: Confirm that the valve’s material traceability documents match your specifications.
Ensure Correct Orientation: Note any flow direction markings and adhere to them, especially for unidirectional designs.

Piping Alignment and Support

Align Flanges Precisely: Misalignment can lead to stress on the valve body and gasket failure.
Use Proper Gaskets and Bolting: Select gaskets per flange class and tighten bolts in a crisscross pattern to ensure uniform pressure.
Support Piping Loads: Prevent undue stress on the shut off gate valve by supporting adjacent pipes, reducing torque on flanged connections.

Torque and Assembly Procedures

Follow Manufacturer’s Torque Specs: Overtightening bolts can warp flanges, while undertightening can cause leaks.
Lubricate Threads: Apply anti-seize compound or lubricant to bolt threads to achieve accurate torque readings and ease future disassembly.
Perform a Hydrostatic Test: After installation, conduct a pressure test at 1.1 times the design pressure to verify leak-tightness.

Initial Operation and Inspection

Cycle the Valve: Open and close the valve fully to ensure smooth operation and identify any binding or obstruction.
Inspect for Leaks: Monitor flanges, stem packing, and body joints during test pressure to detect any leaks.
Record Baseline Readings: Document valve position and torque requirements for future maintenance comparisons.

Maintenance Tips for Longevity

Routine maintenance is key to preventing unplanned downtime and ensuring a shut off gate valve remains reliable throughout its service life. Adhere to these guidelines:

Regular Lubrication

Stem and Packing: Apply recommended lubricants periodically to reduce friction and prevent galling or seizing.
Gear Operators and Actuators: Check and refill grease reservoirs according to the actuator manufacturer’s schedule.

Packing Adjustment and Replacement

Monitor Stem Packing: Inspect for signs of external leakage at the valve stem. Tighten packing nuts in small increments to maintain a leak-free seal.
Replace Packing as Needed: When tightening no longer stops leaks, replace packing material using manufacturer-approved kits.

Seat and Gate Inspection

Visual Inspection: Where possible, inspect the gate and seat surfaces for signs of wear, corrosion, or pitting.
Leakage Testing: Periodically perform a seat leakage test by pressurizing upstream or downstream to check for seepage.
Regrinding or Seat Replacement: If seating surfaces are damaged, regrind or replace seats per manufacturer guidelines to restore tight shutoff performance.

Full Overhaul Schedule

Service Interval: For valves in critical or high-cycle environments, plan a full overhaul every 2–5 years, depending on service severity.
Component Replacement: During overhaul, replace the stem, packing, seat, and gasket components as necessary.
Re-Certification: After major maintenance, re-certify the valve’s performance to ensure it meets original specifications.

Application Scenarios for Different Industries

Shut off gate valves serve diverse roles across multiple sectors. Below are several key application scenarios:

Oil and Gas Production

In upstream and downstream operations, a reliable shut off gate valve is essential for isolating flow during drilling, production, and refining processes. Typical uses include:

Wellhead Isolation: Gate valves installed at the wellhead control high-pressure crude flow.
Pipeline Isolation: Positioned along transmission pipelines to segment flow during maintenance or in emergency shutoff situations.

Water and Wastewater Treatment

Municipal and industrial water systems rely on shut off gate valves for distributing potable water and managing effluent streams. Applications include:

Main Distribution Lines: Large-diameter gate valves regulate flow between treatment plants and distribution networks.
Pump Station Isolation: Installed at pump discharge to facilitate maintenance without draining entire pipeline sections.

Power Generation

In power plants—whether coal-fired, gas-fired, nuclear, or renewable—shut off gate valves are used to isolate steam, condensate, and cooling water lines. Key considerations:

High-Temperature Steam: Valves require material selections (e.g., alloy steels) capable of withstanding temperatures above 500 °C.
Rapid Cycling: In peaking power plants, valves may cycle frequently, demanding robust designs and regular maintenance.

Chemical and Petrochemical Processing

Corrosive fluids and high-pressure conditions in chemical plants necessitate durable shut off gate valves. Common roles include:

Chemical Feed Lines: Isolation valves upstream and downstream of reactors and distillation columns.
Corrosive Service: Stainless steel or specialty alloy valves handle aggressive chemicals.

Marine and Offshore

Shut off gate valves in marine environments must resist saltwater corrosion and comply with maritime standards. Applications include:

Ballast Water Systems: Controlling inflow and outflow in ballast tanks.
Fuel Oil Transfer: Isolating fuel lines to engines and boilers.

Fanlei’s broad portfolio of shut off gate valve products addresses these diverse industry needs, backed by rigorous testing, global certifications, and responsive technical support.

Conclusion

Choosing the right shut off gate valve requires careful consideration of materials, pressure ratings, end connections, and maintenance requirements. A high-quality shut off gate valve not only ensures safe isolation of process streams but also contributes to long-term cost savings and operational reliability. Fanlei’s comprehensive range of shut off gate valve products combines superior craftsmanship with global certifications to meet the demands of various industries. By following the guidance in this buyer’s guide, you can confidently select a valve that aligns with your system requirements and performance expectations.

Ready to find the perfect shut off gate valve for your application? Contact us today to discuss your project needs and receive a customized proposal from Fanlei’s expert team.

FAQ

What is the Difference Between a Shut Off Gate Valve and a Globe Valve?

A shut off gate valve uses a gate-like disk that moves up and down to isolate flow, providing minimal pressure drop when fully open. In contrast, a globe valve has a disc that moves perpendicular to the flow path, offering better throttling control but higher resistance when open. Gate valves are typically used for on/off service, whereas globe valves are suited for flow regulation.

How Do I Determine the Correct Pressure Rating for My Shut Off Gate Valve?

To choose the proper pressure rating, identify the maximum operating pressure of your system and add a safety margin (commonly 10–20%). Match this pressure requirement to the valve’s rated class (e.g., Class 150, 300, or 600). Always consult applicable standards (such as ASME B16.34) for guidance.

Can a Shut Off Gate Valve Be Used for Throttling Flow?

No. Gate valves are not designed for throttling. Partially opening a gate valve can cause vibration, seat damage, and noise. For flow regulation, consider using a globe valve or a butterfly valve. A shut off gate valve should be either fully open or fully closed to ensure longevity and proper sealing.
